Inclinometer Leveler
An innovative bubble leveler featuring a calibrated elliptical curved tube, providing proportional bubble travel and direct, high-precision angular inclination readouts on any surface[cite: 6].
The Instrument
Engineered Elliptical Geometry
Unlike standard cylindrical level vials, the precisely curved elliptical tube enables direct conversion of tilt into proportional linear fluid movement[cite: 6].

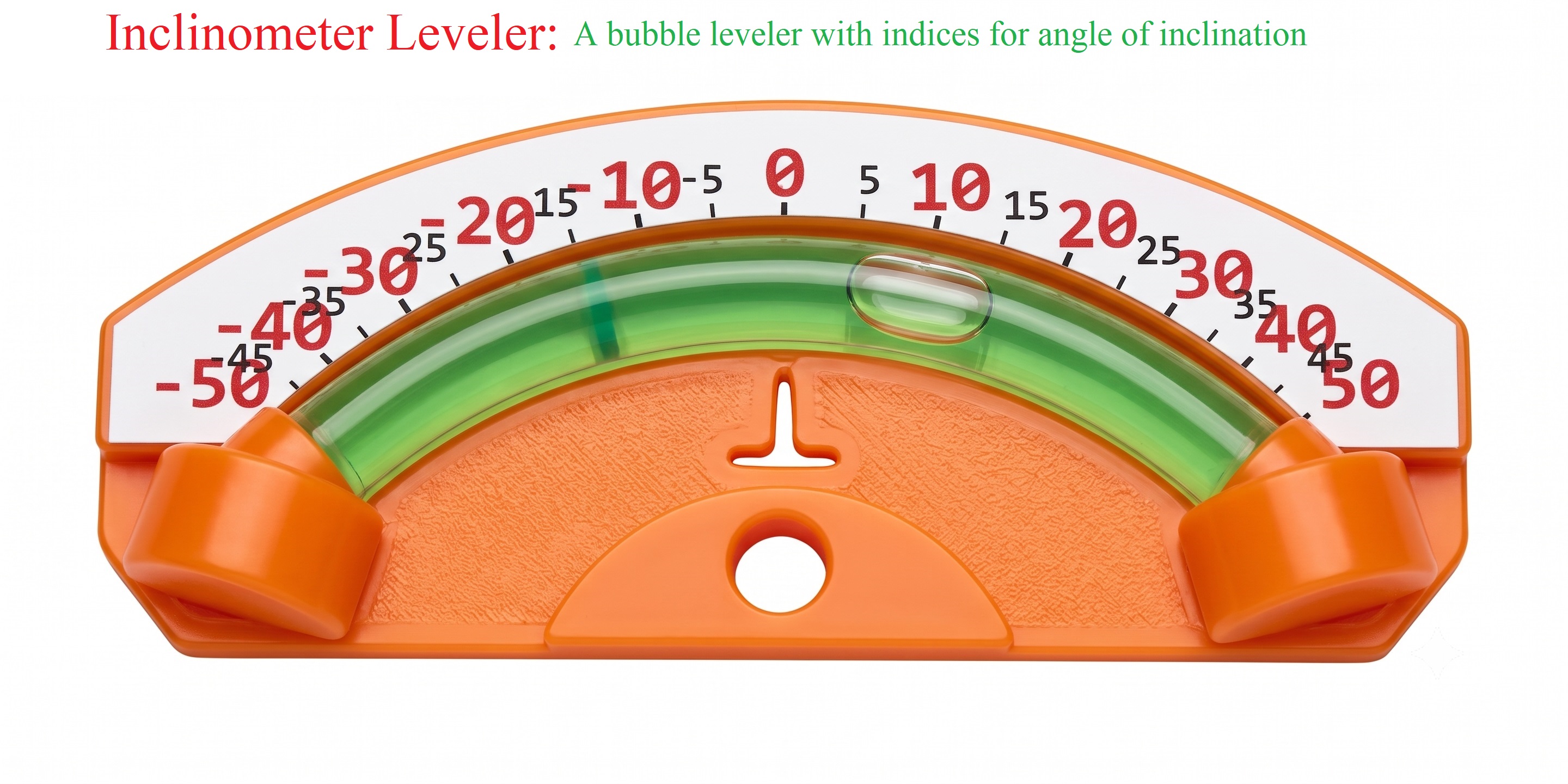

![Inclinometer Leveler with elliptical curved bubble vial and degree graduation indices[cite: 6]](/Images/Portal/MiniLevelerDescreiption.jpg)
High-Visibility Fluid Cell
Features fluorescent green dampening liquid and high-contrast dual-color graduations for rapid, parallax-free workshop verification[cite: 6].
Design Principles
The continuous radius of curvature ensures that bubble displacement remains linear and strictly proportional across the entire inclination range[cite: 6].
Dual-direction scale indexed in 5° increments from -50° to +50°, enabling immediate pitch readings without electronic sensors[cite: 6].
Measures positive and negative incline relative to dead-center horizontal equilibrium (0° reference mark)[cite: 6].
Fluid viscosity is tuned to dampen ambient vibrations while instantly settling into position for rapid quality inspection[cite: 6].
Scale & Operation
Scale Graduation Index
| Incline State | Scale Index | Vial Indication |
|---|---|---|
| True Level | 0° (Apex)[cite: 6] | Bubble Centered[cite: 6] |
| Moderate Tilt | ±10° to ±25°[cite: 6] | Proportional Shift[cite: 6] |
| Steep Pitch | ±30° to ±50°[cite: 6] | End-Stop Tracking[cite: 6] |
| Scale Resolution | 5° Major Steps[cite: 6] | Interpolated Direct Read[cite: 6] |
1. Rest the base flat against the inspection surface[cite: 6].
2. Allow the bubble to settle along the elliptical arc[cite: 6].
3. Read the exact center of the bubble against the scale index to capture slope angle directly[cite: 6].
